ManuLine, a French company that has designed and manufactured bulk handling optimisation solutions for more than 20 years, recently supplied an automotive industry client with a fully custom-built Big Bag emptying station – a solution perfectly tailored to the needs of the client’s production facility.



Vous souhaitez vidanger vos conteneurs souples mais ne savez pas vers quel produit vous orienter ? Une station de vidange avec trémie manchon, vanne à clapet, vanne diaphragme ou encore vanne à semence ? Lisez notre article “Comment choisir une station de vidange pour Big Bag“.

ManuLine, a French company that has designed and manufactured bulk handling optimisation solutions for more than 20 years, recently supplied an automotive industry client with a fully custom-built Big Bag emptying station – a solution perfectly tailored to the needs of the client’s production facility.

The emptying station was entirely custom-built by our design office to fully meet our client’s specifications. The solution ensures the safe emptying of Big Bags containing plastic.

The upper part of the emptying station comprises a holder for handling Big Bags, also known as a Manubag. It features fork slots with spacing perfectly adapted to the client’s lifting system.

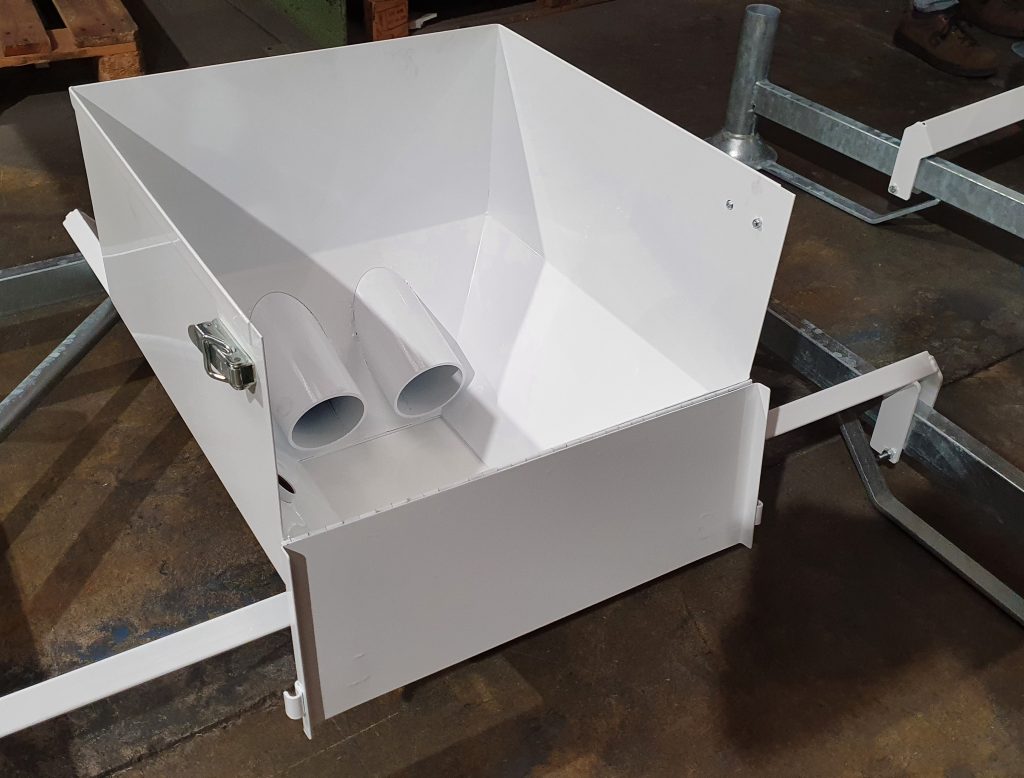

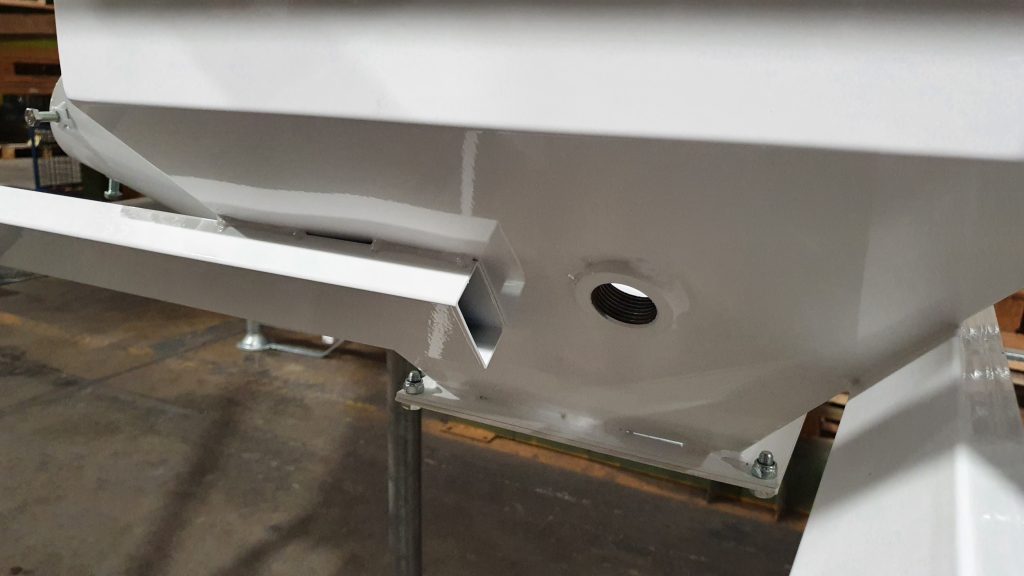

The emptying hopper situated beneath the Manubag facilitates product discharge by suction. Two sleeves opposite the hatch with screw feed device allow simple and quick fitting of the client’s suction system (Photo #1). A sensor coupling was also added to facilitate detection of the product’s low level in the hopper (Photo #2). Moreover, the addition of a gate at the front of the hopper improves visibility and access to the hopper interior.

The base situated beneath the hopper forms the lower part of the emptying station. Alterations were made to bolt the station to the ground in accordance with the client’s specifications.

Do you need a solution for emptying your flexible containers but don’t know which one to choose? An emptying station with a hopper and sleeve, check valve, diaphragm valve or seed valve? Do check our news “How do you choose a Big Bag emptying station“.

ManuLine’s custom-built intra-logistics solutions meet all requirements for handling, storing, emptying, filling, filtering and transporting Big Bags and other flexible containers.
